FRC系列
 |
ACTION: The subordinate shaft is driven for normal or reverse direction to atract one of two armatures which rotats counter wise direction by two bevlel gears on motor driven main shaft. This reversible clutch is used for machines which repeats rotating of normal or reverse direction. |
| Specification and dimension: |
| (Please refer to us about the dimension not listed below) |
| model No：FRC- |
Torque Nm |
Volt DC V |
Amp mA |
Weight kg |
Motor kw |
L |
H |
P |
S |
W |
U |
| FRC-30 FRC-50 |
7 40 |
90 90 |
86 150 |
12 26 |
0.2 1.5 |
303 419 |
145 180 |
122 170 |
15 24 |
5 7 |
3 4 |

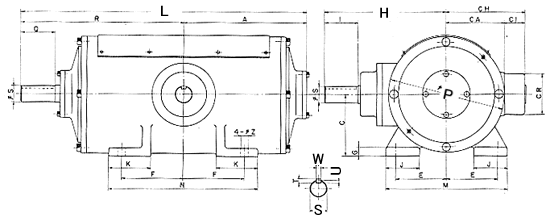

| Illustration. |
 |
