; ZBP/ZCP系列


ZBP disc spring type electromagnetic brake	ZCP disc spring type electromagnetic clutch

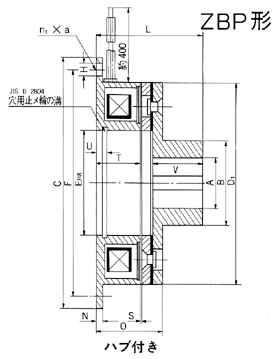

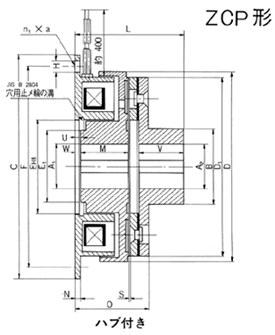

Dimension:

characteristics and rating

model No：ZBP/ZCP-

ZBP-05

ZCP-05

ZBP-06

ZCP-06

ZBP-08

ZCP-08

ZBP-10

ZCP-10

ZBP-12

ZCP-12

ZBP-16

ZCP-16

Torque

Nm

2.5

5

10

20

40

80

Standard hole dia of
φA、φA1、φA2　H7

10

10

17

29

25

30

Max hole dia of
φA、φA1、φA2　H7

15

15

20

25

30

40

Rated voltage

DC V

24/90

←

←

←

←

←

Wattage
(20℃)

W

10

11

15

20

25

35

Outer dia

φC h9

65

80

100

125

150

190

Length of L1 (ZBP)

37.2

37

44.5

53

61

73

Length of L1 (ZCP)

43.3

43

51

61

70.5

84.5

Illustration

ZBP-10

ZCP-10
