环境设备Environmental Equipment

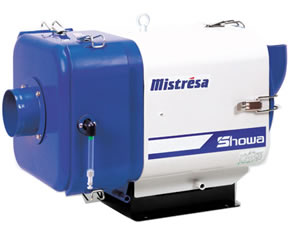

 CRX series

Back to Product Lineup

purposes & Feature

  • Manufacturing machinery
  • Others



  • Motor thermal protection unit
  • Easy maintenance
  • Compact and easy installation
  • Excellent collecting efficiency
  • Double vibration absorption structure


Specifications


项目/形式 CRX-04 CRX-07 CRX-15 CRX-22
Power source
Tree phase 50Hz 200V 60Hz 200V/220V
Output kW
0.4 0.75 1.5 2.2
Frequency Hz
50/60/60 50/60/60 50/60/60 50/60/60
Current A
2.0/1.8/1.8 3.0/2.9/2.9 6.0/6.0/5.7 9.0/9.0/8.5
Max air flow m3/min
3.4/4.0 6.5/7.5 12/14.5 19/19
Max static pressure kPa
0.75/1.10 1.10/1.60 1.60/2.25 1.70/2.40
Noise in field 1m dB (A)
60/64 66/71 71/75 75/79
Collection efficiency %
99.8(Gravimetric method oil mist)
Highest intake temperature ☆
50
Mass kg
33 43 62 75
Inlet diameter mm
φ98 φ123 φ148 φ198
Ambient temperature ☆
MAX.50
Color
Main body N-8(white), side cover etc 2.5PB 3.5/108(blue), mount NH(black)
Standard accessories
primary filter (for replacement)...1 sheet
drain tubes 2.5mm...2 unit
Hosebands (for drain tubes)...2 unit
Crimping terminals (TMEV2Y-3.5)...7 unit
vibration absorption pads...4 unit
tooling paper template...1 sheet
companion flange set...1 unit
